Vacuum equipment supporting stable heat treatment while reducing oxidation and contamination according to material properties.

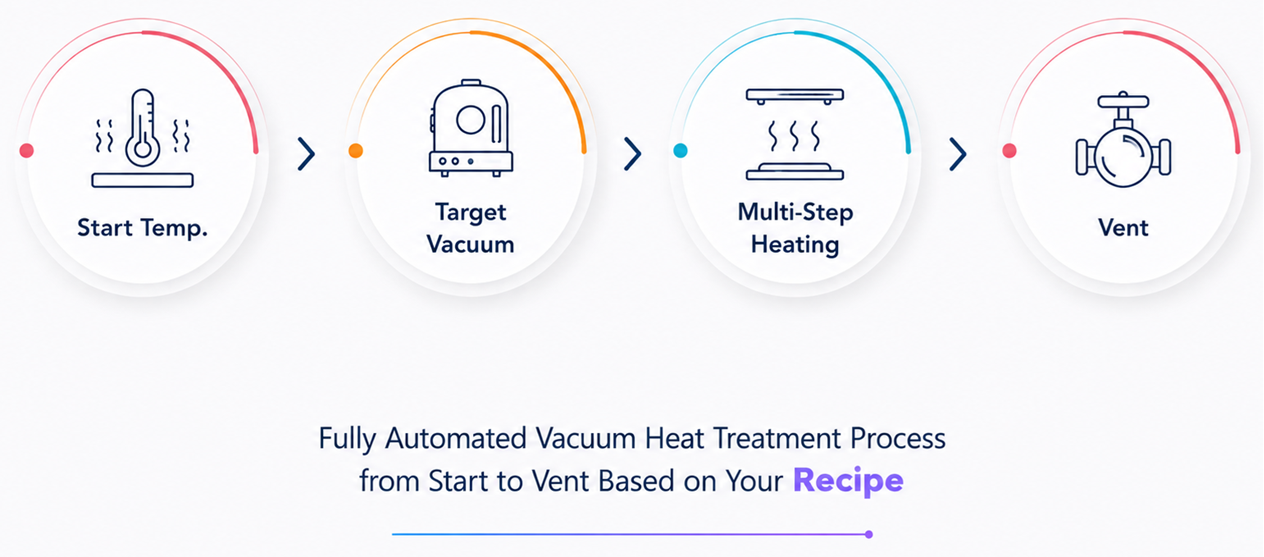

| Application Fields | Precision heat treatment in a high-vacuum environment to prevent oxidation on part and substrate surfaces Internal stress relief, hardness improvement, and physical property enhancement for metals, ceramic structures, and related parts Precise control of customized temperature profiles(recipes) according to product geometry and material properties |
|---|---|
| Process Method | Custom Vacuum Heating System |
These are standard specifications and can be customized upon customer request.
| Chamber | Dia. 600~2,800mm | 1 set |
| Roughing System (RP) | 5,100liter/min (optimized capacity by chamber) | 1 set |
| Roughing System (MBP) | 1,435m3/hr (optimized capacity by chamber) | 1 set |
| Turbo Molecular Pump | 4,200liter/sec | 2 set |
| PolyCold w/meissner trap | For chamber | 1 set |
| Valve System | High Vac./ Low Vac./ Vent Valve | 1 set |
| High Vacuum | Penning Sensor | 1 ea |
| Low Vacuum | Pirani Sensor | 2 ea |
| Halogen Heater | 12~24 kW | 1 set |
| PLC Control Rack | 19” Rack | 1 set |

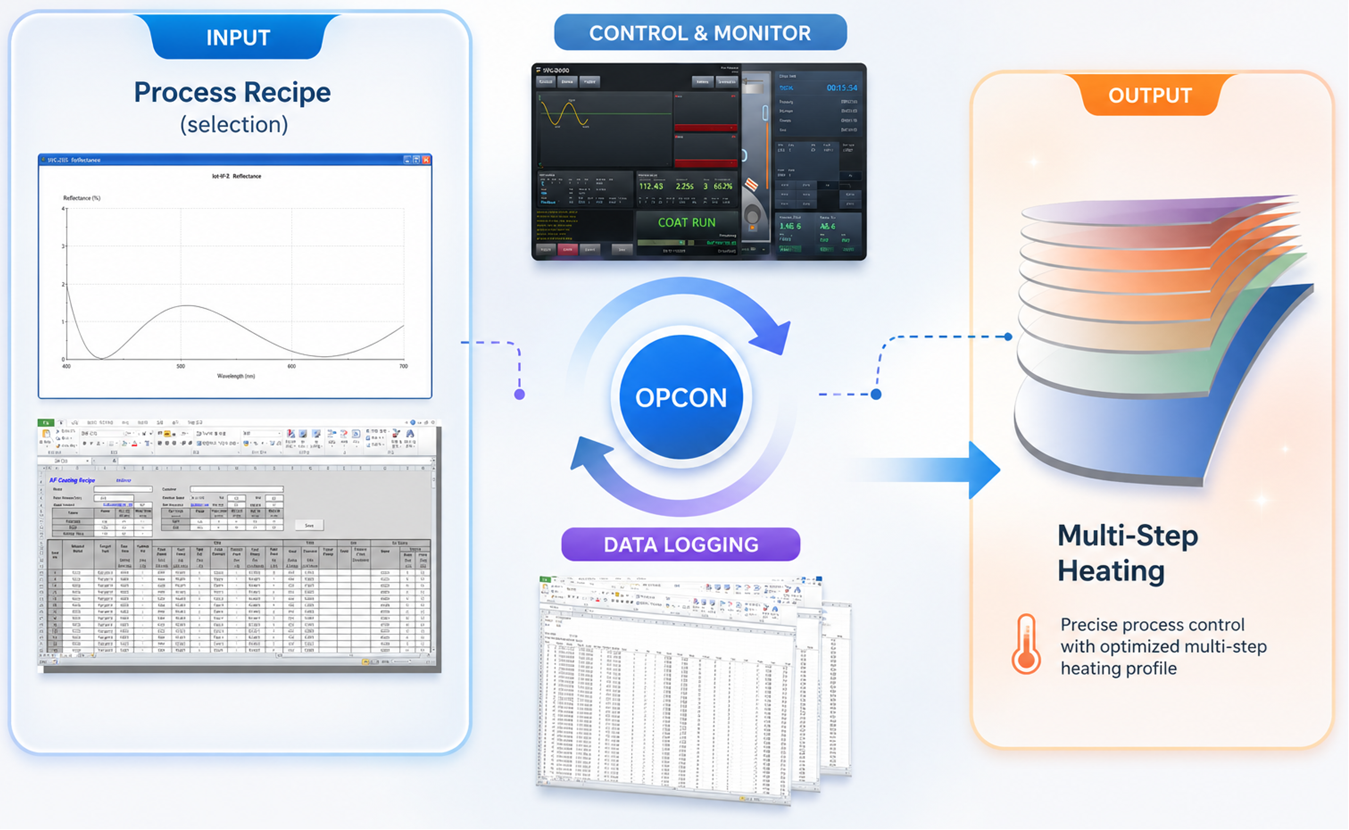

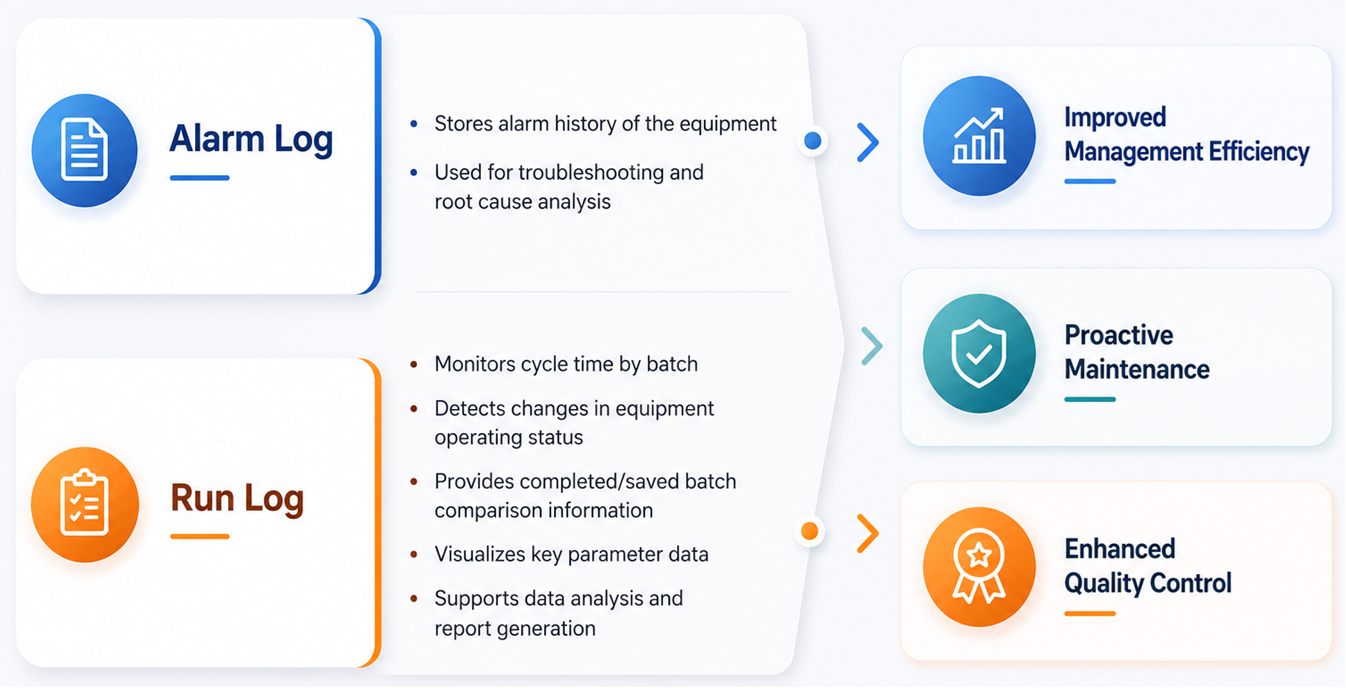

| Process Control | OPCON System | 1 set |
| Chamber | 7,500~15,000g |
| Roughing System (RP / MBP) | 370kg |
| Control Box | 700kg |
| Power | 95~135kW 3ph 4P 50 or 60Hz (50mm2) |
| AVR | 20kVA electronic type (220V 3ph) |
| Earth | Class A (Below 4Ω) |
| 3,500W x 5,100D x 2,900mm (Excluding space for Work & Chiller) |
| Compressed Air | 6kg.f/cm2 100LPM w/mist filter |
| Cooling Water | 3kg.f/cm2 120LPM/ Inlet & Outlet |
| Gas | Ar, O2 (99.99%) |
| Exhaust | 3’ tapped hose to pump exhaust |
Equipment images showing the front view, open chamber, and rear configuration of the vacuum heat treatment system.
Front View
Open Chamber
Rear View
